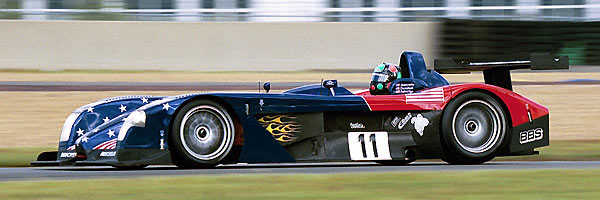

chassis no. LMP 07 .... car no. 11 at preliminary tests, car no. 12 for race week




Engine :
Type Elan Power Products V-8 Aluminium Block & Heads, 6 litre ohv 2-valve/cyl V-8, 600 + bhp @ 7000 rpm, Elan Cross-Ram fuel injection

Transmission :
Panoz/Xtrac 6-speed sequential

Wheels :
BBS - front 13.5 inches x 18 inches, rear 15 inches x 18 inches.

Tyres :
Michelin - front 33/65/18, rear 37/71/18.

Brakes :
15.0 inch vented discs - Hitco Carbon Fibre, non-assisted dual circuit.

Steering :
Rack & Pinion 7 tooth, Kayaba Electric PAS 5 Position Turns, lock-to-lock: 1 turn.

Suspension :
Upper & lower A-arms, coil-over springs with 4 way adjustable tube shocks, adjustable anti-roll bar.

Instrumentation :
Pi Panoz-Sigma Steering Wheel Display, Laptime, Water Temp, Gear Change Lights, Gear Position, RPM on Main Page.

Chassis/Bodywork :
Carbon-fibre monocoque. Car length 183.0 inches, width 78.6 inches, height 42.1 inches, ground clearance 1.93 inches front & 2.48 inches rear, wheelbase 108.2 inches, track 64.8 inches front & 63.2 inches rear, weight 900 kg.
